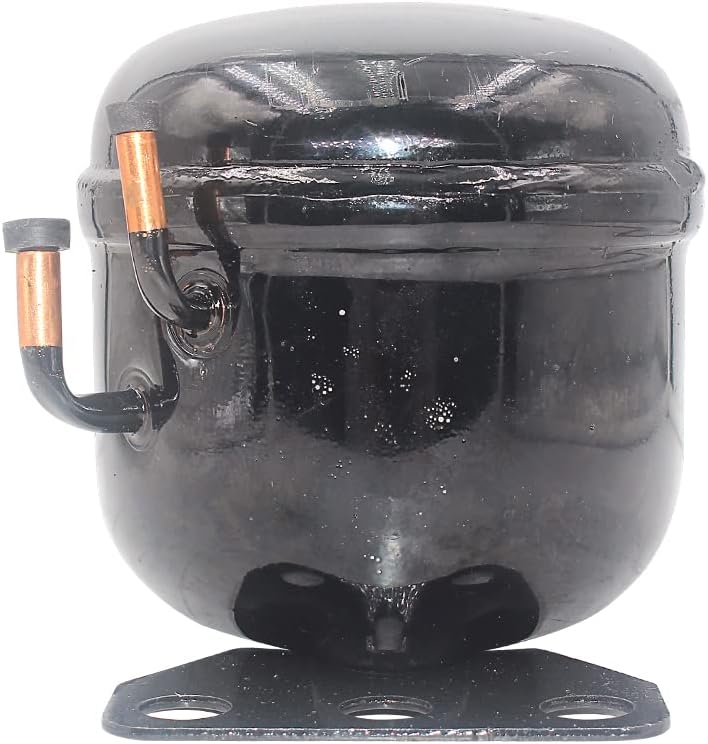

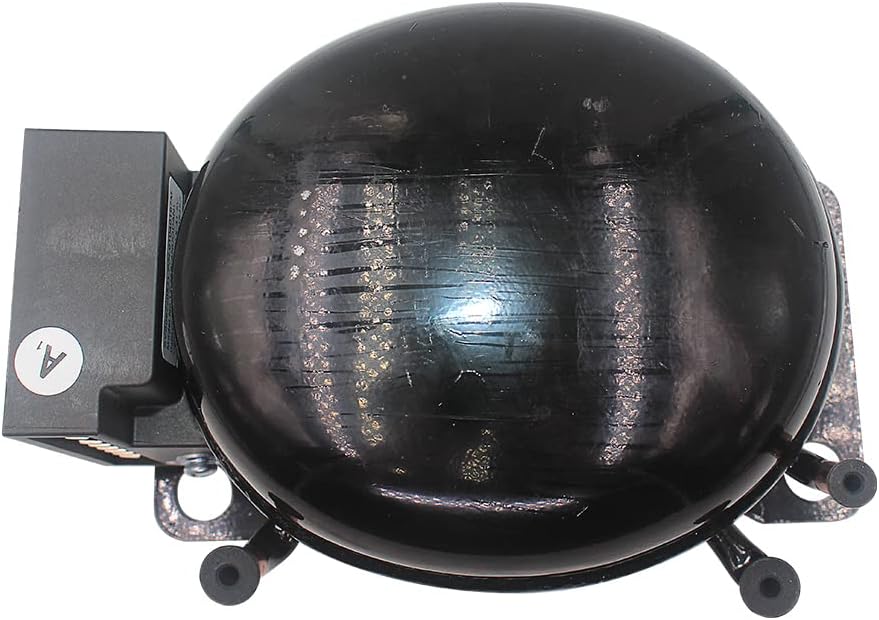

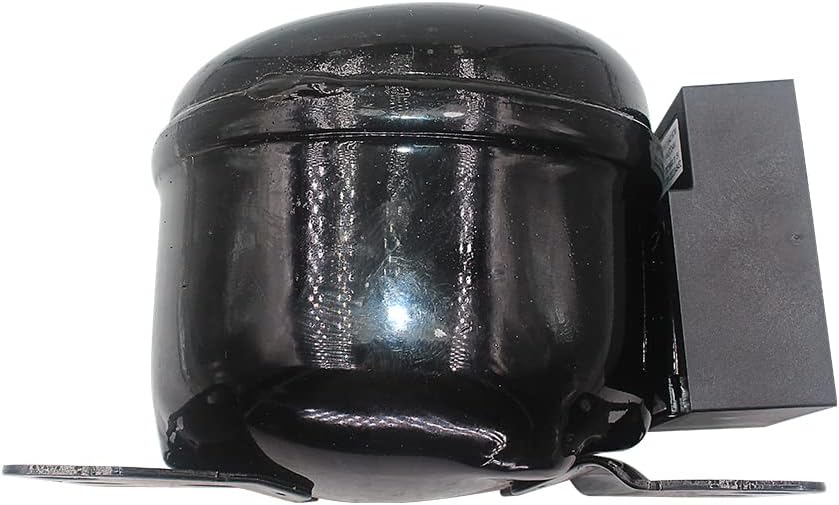

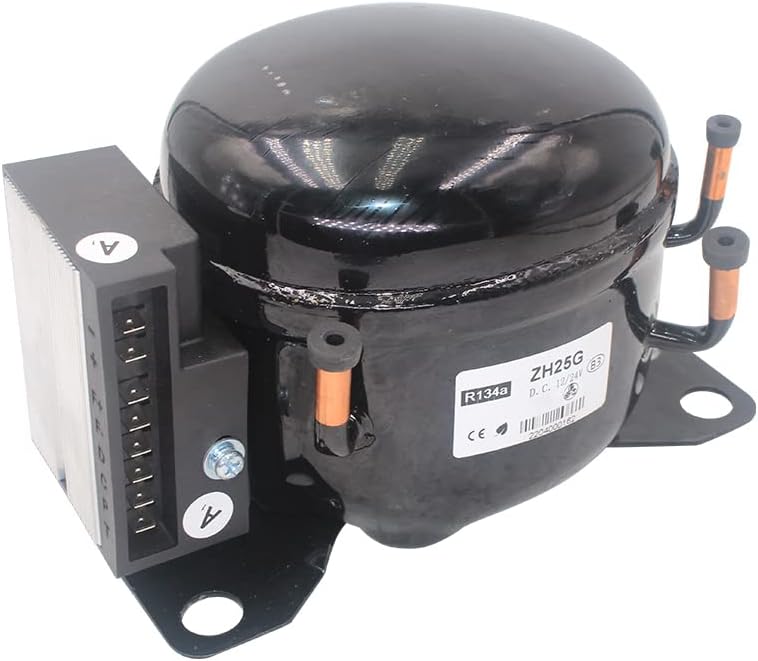

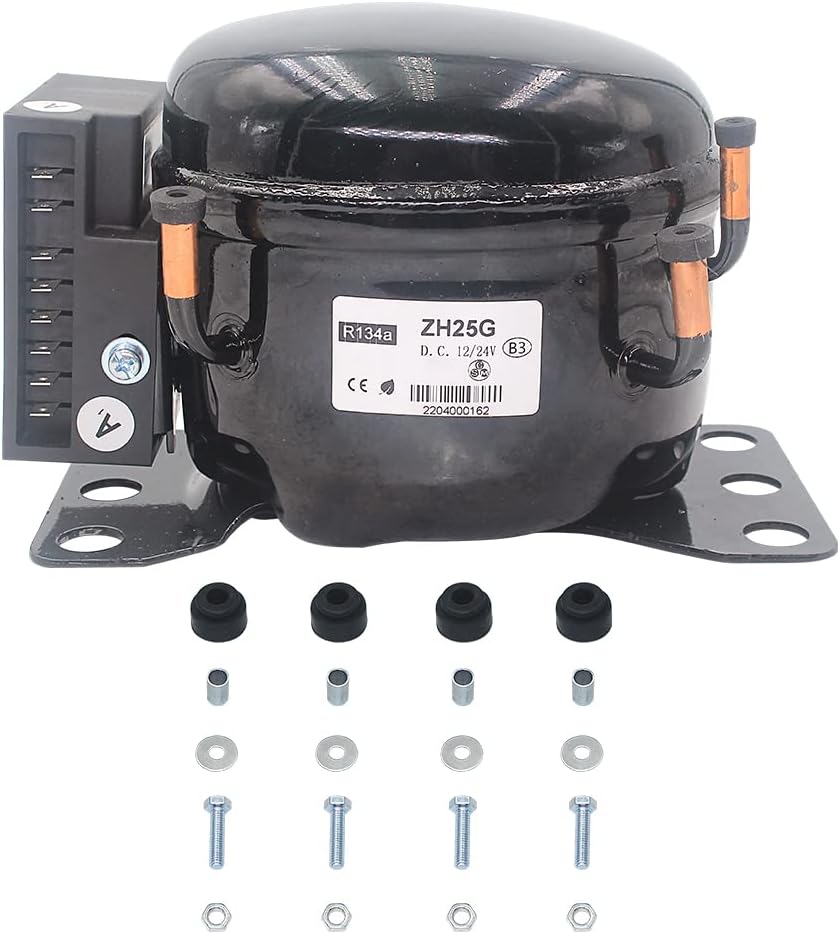

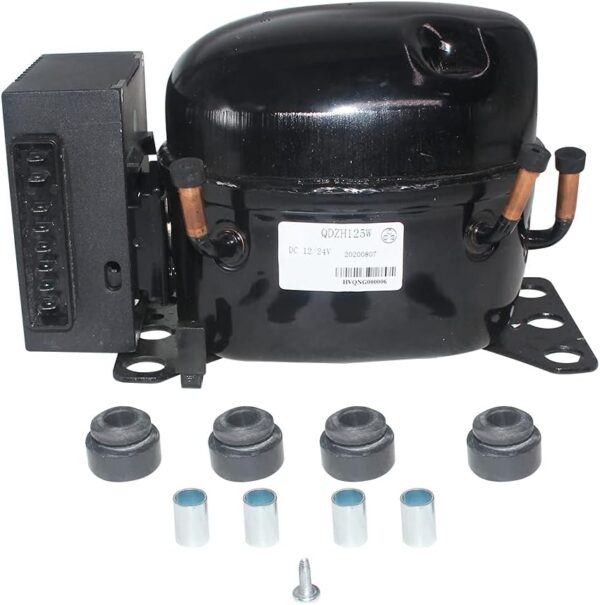

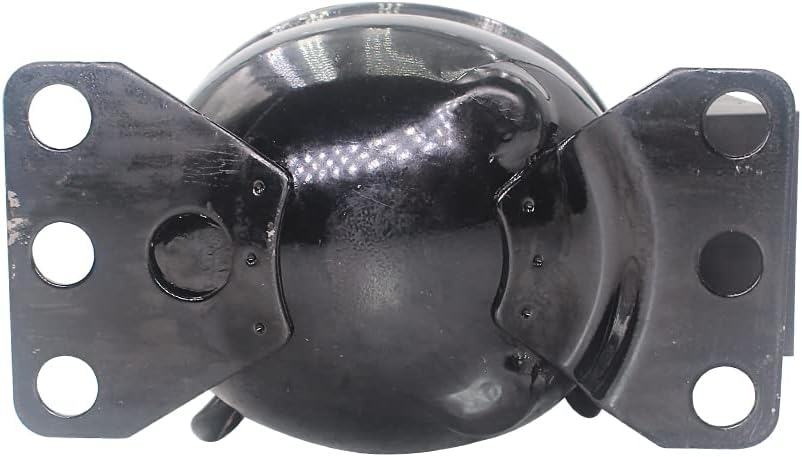

Cooling Capacity

• RPM is 2000, cooling capacity is 45W , 38.7 Kcal/h ,153.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 2.9/1.4，input Power is 36W
• RPM is 2500, cooling capacity is 55W , 47.3 Kcal/h ,187.7 btu/h,Efficiency COP is 1.25 w/w,electric current is 3.5/1.7,input Power is 44W
• RPM is 3000, cooling capacity is 64W , 55 Kcal/h ,218.4 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.1/2.0, input Power is 51W
• RPM is 3500, cooling capacity is 74W , 63.6 Kcal/h ,252.5 btu/h,Efficiency COP is 1.25 w/w,electric current is 4.9/2.4, input Power is 59W

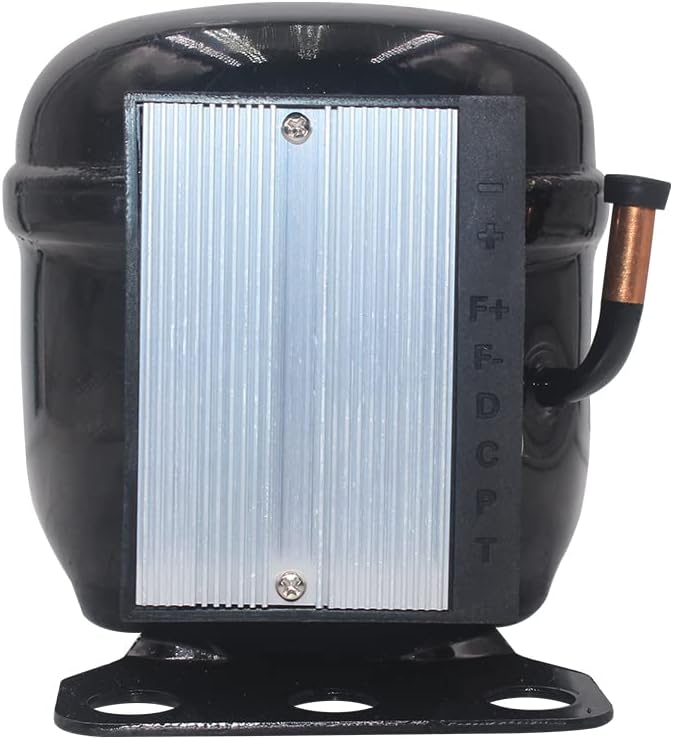

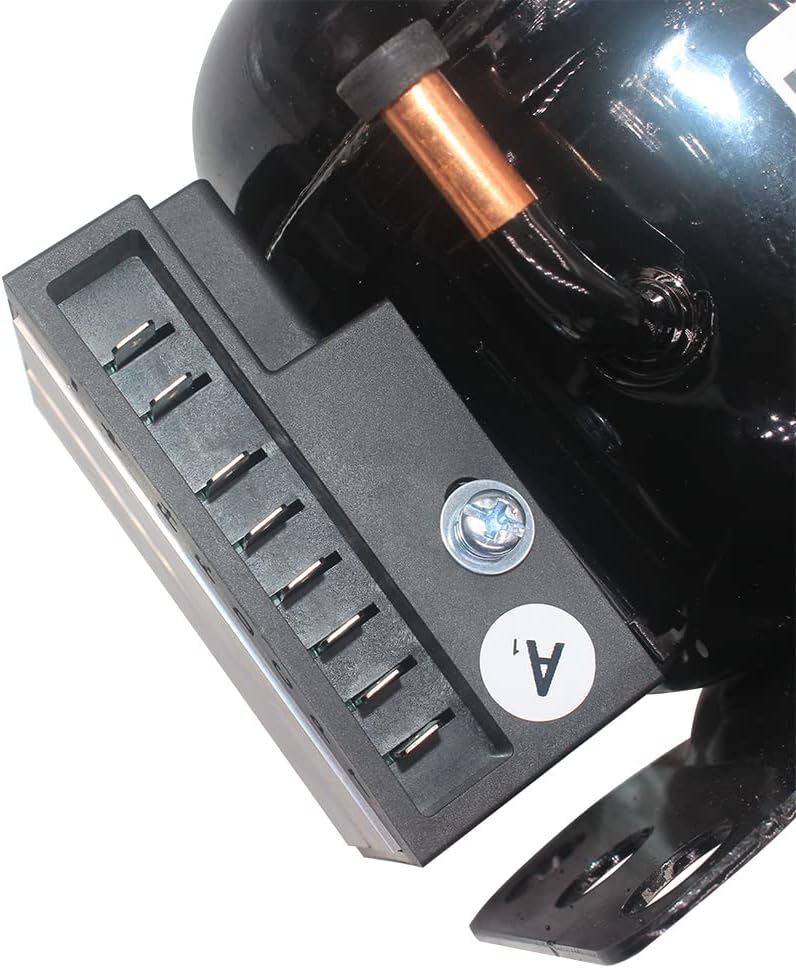

1) Controller must be connected with DC power terminal 1. Reversed connection will result in off work.

2) To protect the controller, fuse protector 2 must be connected at positive pole terminal. And it should be near the power supply as possible as you can. We recommend to use 15A fuse (12V DC) or 7.5A fuse (24V DC).

3) If you add a main power switch 3, the rated current should not be less than 20A.

4) Do not add any other circuit to avoid controller protect duo to overload voltage.

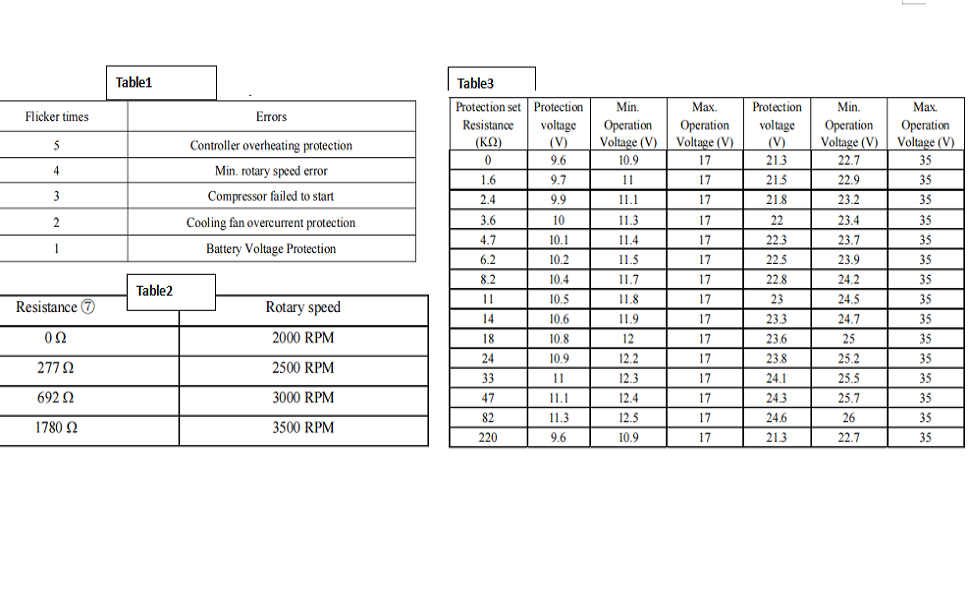

5) Add a 10mA luminous diode between “+”and D. The error during compressor operation will be indicated by the flicker times, every flicker will last 1/4 second, each error will repeat every 4 seconds. If failed to start, another start will be tried after 60 seconds, till starts successfully. Please see Table1.

6) Cooling fan is connected between F+ and F-. 12V DC cooling fan must be used for both 12V DC cooling system and 24V DC cooling system because the voltage between F+ and F- is permanent 12V DC. The current protection is 1A, we suggest use cooling fan of smaller than 5W.

7) Temperature control 6 is connected between C and T, it will control the compressor to start or stop.

8) Resistance for speed adjustment 7 is connected between C and T. The compressor rotary speed can be changed by adjusting the resistance value. The rotary speed can be adjusted at the range of 2000rpm～3500rpm. Resistance 7 and the rotary speed is corresponding as Table2.

9) Power supply protection resistance is connected between C and P. Different resistance value will change the protection set of the battery voltage. The protection set of the battery voltage is corresponding with the 8 resistance as Table3.

10) Compressor controller can adjust to suitable voltage automatically, when voltage is lower than 17V, controller regards it working in 12V DC cooling system; when voltage is higher than 17V, the controller regards it working in 24V DC cooling system. If you add a 220KΩ resistance between C and T, then the compressor can work at the voltage of 9.6V～31.5V.

Announcements

1） Compressor must be driven by the compressor controller, work voltage is 12V/24V, do not allow to

connect AC power directly.

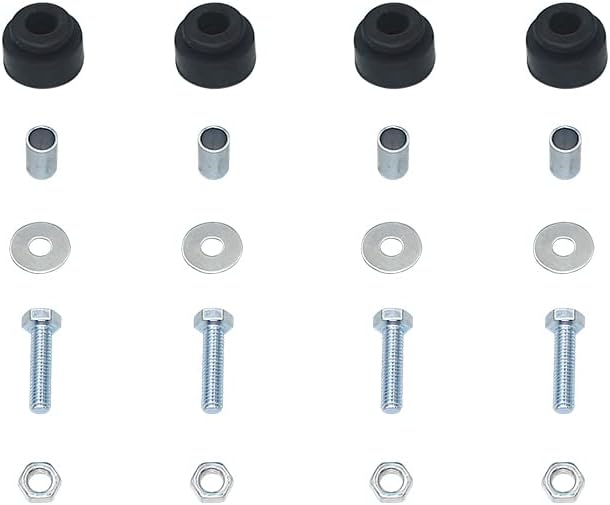

2） Install the compressor promptly after the rubber plug is removed.

3） The working ambient temperature should not be higher than 43℃, when working in the Max. ambient

temperature, the Max. condensing pressure should not be higher than 1.75MPa, the Max. peak condensing

pressure should not be higher than 2.17MPa.

4） Pressure balance（43℃）When starting, there should not be pressure of 0.5MPa or above inside the

compressor body.

5） The next start should be delayed 5 minutes or above after the compressor stops.

6） Do not use compressor for vacuum purpose, do not power the compressor in vacuum condition.

7） Keep the cooling system clean, avoid chlorine ion, paraffins, etc.

8） To start and operate the compressor regularly, the wiring of the power supply and controller must apply to

the following sheet:
