TSGUN TPMS Programming Tool Car Tire Pressure 433 315MHZ RF-Sensor Activator Learning OBD2 Scanner for X431 V/PRO3S+/PAD

X-431 TSGUN is a professional TPMS diagnostic tool that integrates TPMS sensor activation, reading, learning and programming. It can activate and read tire pressure sensor information through high or low radio frequency
The X-431 TSGUN tire pressure gun is portable, powerful and easy to operate. It needs to work with LAUNCH intelligent diagnostic tool to perform the tire pressure activation, programming, diagnosis and learning functions.

The key reason to Choose LAUNCH TSGUN TPMS Wand

1. 1.77 inch color screen

2. Instantly read tire pressure, tire temperature and battery status

3. Diagnose tire pressure fault, including read DTC, clear DTC, etc.

4. Activate and match all 315MHz or 433MHz sensors

5. Read, copy and write the sensor ID quickly

6. Reprogram LAUNCH sensors with unlimited times

7. Built-in tire pressure learning instruction makes operation more easy

8. Cover 98% global vehicles with tire pressure system

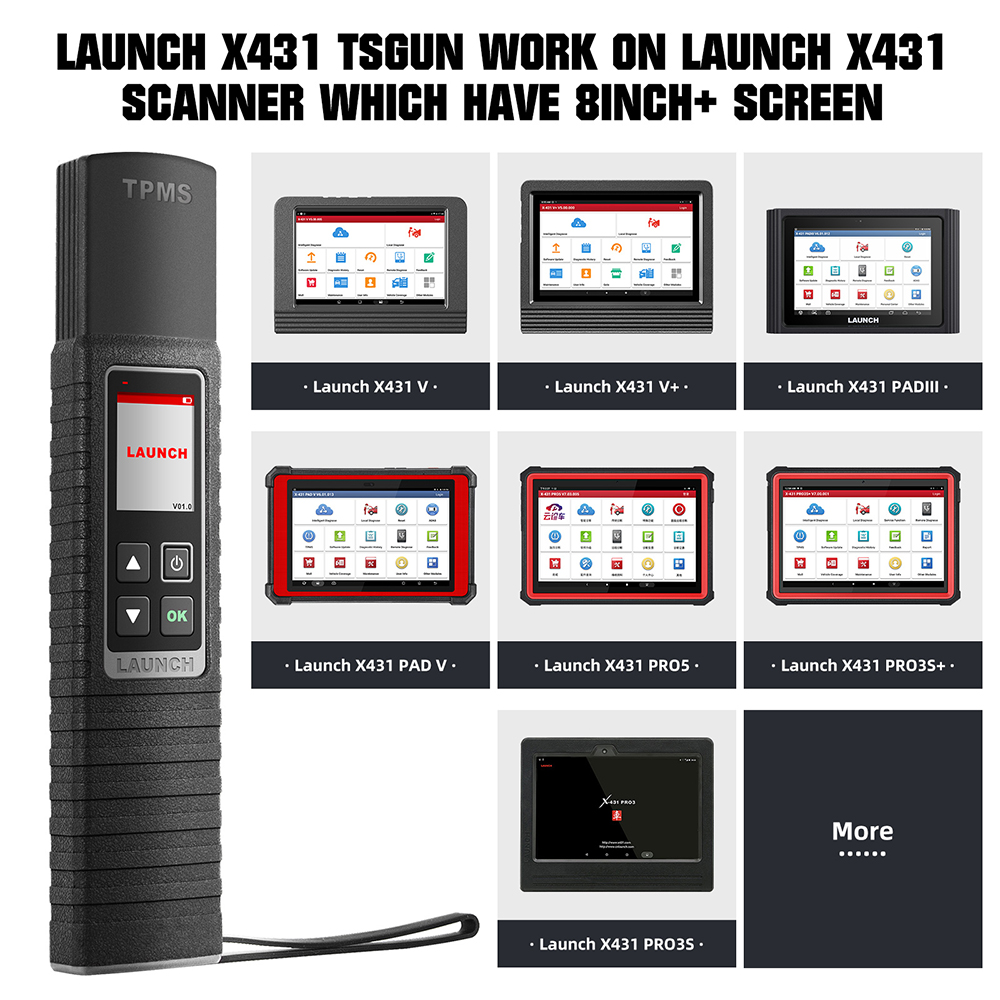

9. Compatible modules： X431 V/V+/PRO3S/PRO3S+/PAD V/PAD II/PAD VII,ect

10. Support Language : English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional

2 IN 1 RF-Sensor : 315 MHZ+ 433 MHZ

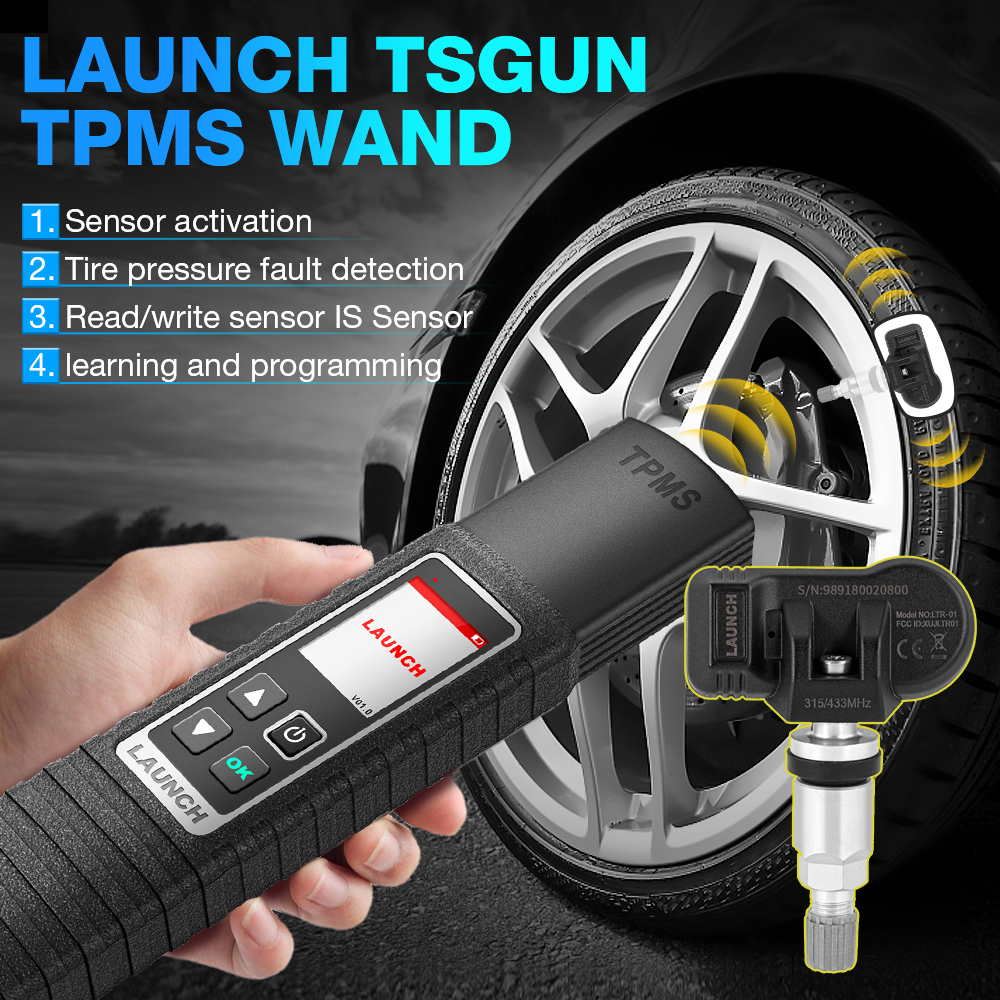

Activate Sensor

This function allows users to activate TPMS sensor to view sensor data such as sensor ID, tire pressure, tire frequency, tire temperature and battery condition.

Diagnose tire pressure fault

Read and clear the fault code of the TPMS system

Program Sensor

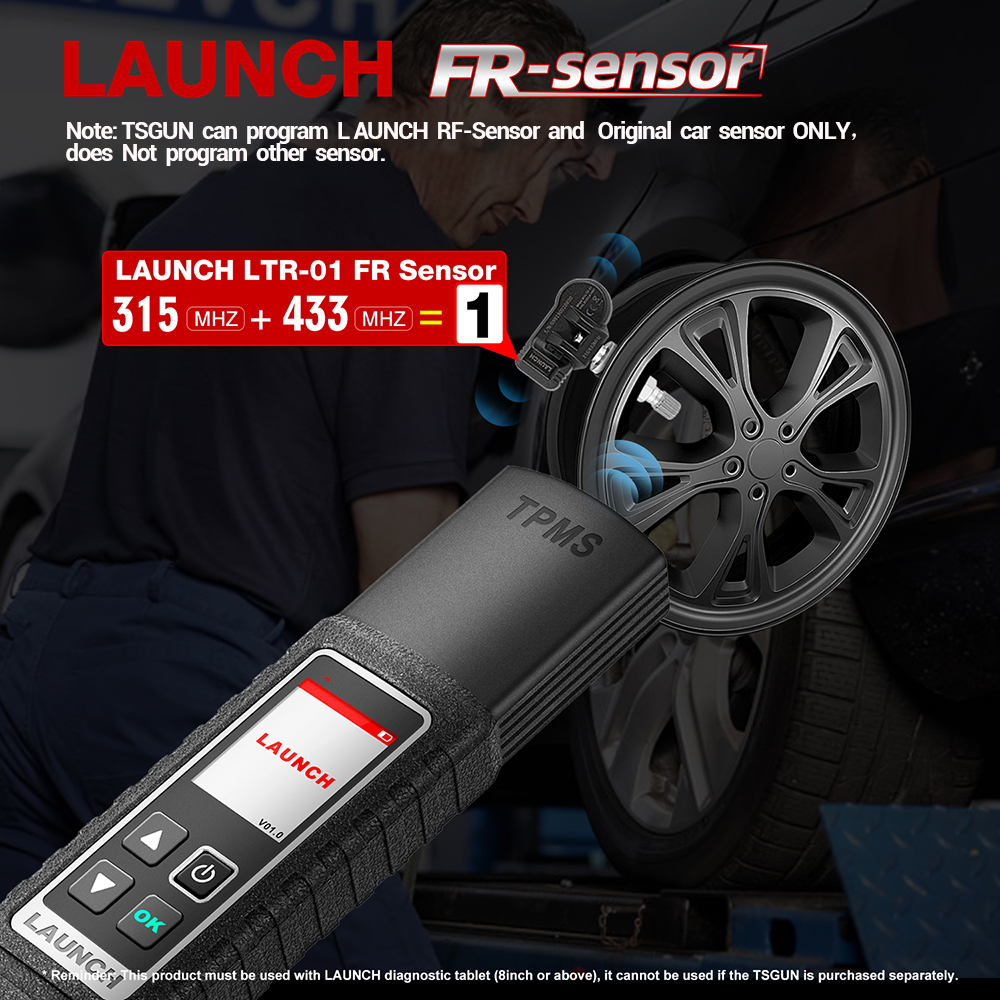

This function allows users to program the sensor data to the L AUNCH-sensor and replace faulty sensor with low battery life or one that is not functioning.

There are three options available for programming LAUNCH-sensor:Auto Create, Manual Create and Copy by Activation.
(Note: Do not place the device close to several sensors at the same time, or the diagnostic tool will detect more sensors, which may result in programming failure)

Method 1 – Auto Create

When the original sensor ID cannot be obtained, this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Method 2 – Manual Create

When the original sensor ID cannot be obtained, this function can be used to program the LAUNCH sensor according to the ID randomly created by the test vehicle.

Method 3 – Copy By Activation

By first activating the original sensor data, and then copying the activated sensor data into the LAUNCH sensor. Before using this method, the original sensor data must be activated.

TPMS Relearn

The user can use this function to write the newly programmed sensor ID into the vehicle ECU for sensor identification. Only when the newly programmed sensor ID is different from the original sensor ID stored in the vehicle ECU, the re-learning operation is required.

There are three ways available for Relearn: Static Learning, Self- Learning and Relearn by OBD.

Method 1 – Static Learning

Static learning needs to put the vehicle in “learning mode”, and then follow the learning steps prompted on the screen.

Method 2 – Self-Learning

For some vehicles, the learning function can be completed by driving the vehicle self-learning.

Method 3- Relearn by OBD

This function allows the diagnostic tool to write the sensor ID to the TPMS module.

To perform the OBD re-learning function, first use the tire pressure tool to activate all four tire sensors. Then use the diagnostic equipment and its attached diagnostic connector, and follow the on-screen instructions to complete the re-learning operation.

Easy to Binding TSGUN TPMS Wand ?

For initial use, user needs to bind the X-431 TSGUN to the diagnostic tool,

1. Tap TPMS on the Job menu of the diagnostic tool.
2. Tap Bind X-431 TSGUN to enter.
3. Tap Bind, the binding interface will pop up.
4. Enter the required information. After inputting, tap Bind. It will be displayed in the Bound list automatically .
( Repeat steps 3~4 to bind multiple X-431 TSGUN devices to the diagnostic tool.）

How does LAUNCH X-431 TSGUN Work ?

Compatiable Vehicle List:

For ABARTH,for ACURA ,for ALFA ROMEO, for ASTON-MARTIN ,for AUDI , for ALPINA , for BAIC
, for BAOJUN, for BENTLEY,for BMW, for BORGWARD, for BUGATTI,for BUICK, for BYD, for
CADILLAC, for CHANGAN, for CHERY, for CHEVROLET, for CHRYSLER, for CITROEN, for CMC, for DACIA, for DAEWOO, for DFM, for DODGE, for FAW, for FERRARI, for GEELY, for GMC, for GREAT WALL, for HAVAL, for HAIMA, for HOLDEN, for HONDA, for HSV, for HUMMER, for HYUNDAI, for
INFINITI, for ISUZU, for JAC, for JAGUAR, for JEEP, for KIA, for LADA , for LAM BORGH-INI, for LANCIA, for LANDROVER, for LEXUS, for LIFAN, for LINCOLN, for LOTUS, for LUXGEN, for MAHINDRA, for MAN, for MASERATI, for MAYBACH, for MAXUS, for MAZDA, for MCLAREN, for MERCEDES, for MG, for MINI, for MITSUBISHI, for NISSAN , for OPEL , for PAGANI, for PEUGEOT,
For PORSCHE, for QOROS, for RENAULT,for ROLLSROYCE, for SAAB, for SCION, for SEAT, for SKODA, for SMART, for SSANGYONG, for SUBARU, for SUZUKI, for SGMW, for TESLA, for SMART
, for SSANGYONG, for SUBARU, TOYOTA, for TRAUM, for VAUXHALL, for VOLKSWA-GEN , for VOLVO, for ZOTYE,for FIAT, for FORD, for FOTON, for CHRYSLER, for GMC, for DFM, for CADILLAC
, for CHERY, for CHEVROLET , for DODGE,for FAW, for FERRARI, for JAC ,for JAGURE
